SMART WATCH TEARDOWN

-



SMART WATCH TEARDOWN

Smartwatches have become an important part of our daily lives. They help us track our fitness, receive notifications, and even make calls. But have you ever wondered what is inside a smartwatch?

In this blog, we will take apart a smartwatch to see its internal components. We will explore the display, battery, sensors, processor, and other key parts. This teardown will help us understand how a smartwatch works and how all the small components fit together in a compact design.

Let’s begin the teardown and discover the technology inside a smartwatch!

Before Opening





Here’s a breakdown of the components:

Battery (LQ-S1) – This is a 3.7V, 380mAh rechargeable lithium battery. It powers the smartwatch and is designed for low-power operation.


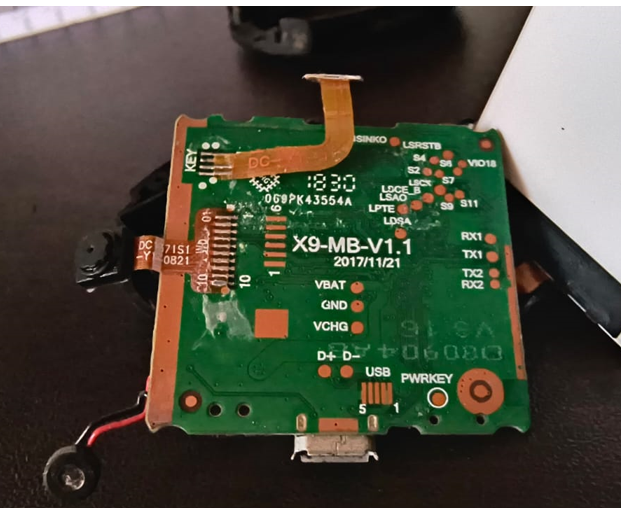

Main Circuit Board (PCB) – This green board contains the key electronic components.




1: VIBRATION MOTOR

2: SPEAKER

3: PCB ANTENNA

4: MINI USB CONNECTOR

5: BATTERY CONNECTOR

6: SIM SLOT

7: CAMERA

8: SD CARD SLOT

9: POWER SWITCH

10:GSL 2036 Touch Controller IC

Touch Controller IC

11,12 DISPLAY CONNECTORS

13. MEDIATEK PROCESSOR (MT6260)

PROCESSOR



Datasheet Link: Click here

14: CRYSTAL

15: POWER IC MS5525



16: MIC

17: DISPLAY

TOCUH SCREEN



PCB TOP SIDE


Conclusion:

Through this teardown, we explored the internal components of a smartwatch and understood how different parts work together. The battery, camera, display, main processor (MT6260), SIM card slot, vibration motor, and other key components make the smartwatch functional and compact.

This teardown gives us a better idea of the engineering behind smartwatches. It shows how manufacturers fit advanced technology into such a small device while balancing performance, power efficiency, and connectivity.

Hope you found this teardown interesting! Stay tuned for more tech breakdowns.
